Brinkmann Grill Parts

Stainless steel 14-1/2" straight tube burner. Mounting tab is bent at a 45 degree angle and has the mounting hole centered on the tab. Measures 14-1/2" end to end including tab. Replaces Brinkmann OEM Part 154-9210-0.

Stainless steel 14-1/4" straight tube burner. Mounting tab is flat and has the mounting hole offset on the tab. Measures 14-1/4" end to end including tab. Replaces Brinkmann OEM Part 154-4415-4.

Stainless steel 15-3/8" straight tube burner. Mounting tab is flat and has the mounting hole offset on the tab. Measures 15-3/8" end to end including tab.

15-3/8" long stainless steel burner tube. Fits many Brinkmann and Nexgrill models. Features an air mixture adjustment shutter with insect screen on the valve end, an offset mounting hole on the back end and an attached electrode mounting bracket.

Stainless steel center feed "U" shaped burner. Measures 17-3/4" X 5-3/8". The overall tip to tip length including the mounting tab is 18-3/4". Features an adjustable air mixture shutter with insect screen on the valve end and a forked mounting tab on the back end. (Replaces Brinkmann OEM part 154-8750-0). Fits Brinkmann models 810-8750-S and 810-8755-F / Charmglow models 810-8750-S, 810-8750, 8108750S, 8108750, 810-8750-F, 810-8752-S and 810-8755-F.

13-1/2" long cast iron bar burner (length measurement is total, "tip to tip"). The width measured across the top of the burner is  2-1/4".  The venturi pipe extends 3-1/8" from the main burner body and has a 1/2" diameter hole for the gas valve orifice stem.  Features a centered mounting peg that is 12-3/16" from the end of the venturi pipe (valve end) to the center of the peg.  Mounting cotter pin is included.

12-3/4" long cast iron bar burner (length measurement is total, "tip to tip"). The width measured across the top of the burner is  2-1/8".  The venturi pipe extends 3-3/4" from the main burner body and has a 1/2" diameter hole for the gas valve orifice stem.  Features a "tapered barrel body" and a mounting peg that is 10-7/8" from the end of the venturi pipe (valve end) to the center of the peg.  Mounting cotter pin is included.  Fits many Brinkmann, Sears/Kenmore and other brands.

Straight "rail" style cast iron burner. Dimensions are 2-3/8" across the top X 16-1/4" long. (Length measurement is total length tip to tip.)

Stainless steel straight tube burner. Mounting tab is flat and has the mounting hole offset to the right side of the tab. Measures 16-1/4" end to end.

Stainless steel straight tube burner. Mounting tab is flat and has the mounting hole offset to the right side of the tab. Measures 15-7/8" end to end.

Heavy duty stainless steel center feed U-shaped tube burner. Measures 19-1/4" total length front to back including the center tube and is 6" wide. Fits a variety of  DCS models and also some Charmglow models. Quality Aftermarket Part.  Replaces DCS OEM Part 210617P.

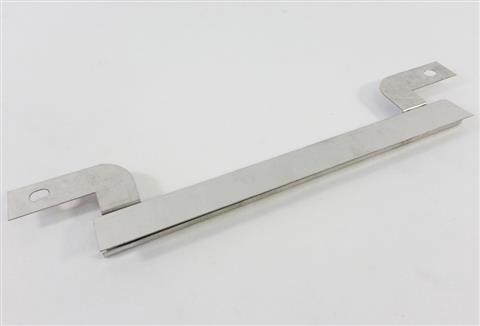

Stainless steel crossover ignition channel with "angled" mounting tabs. The crossover channel mounts at the end of the the burners. Please note: These crossovers have tabs that are at a 90 degree angle. The channel length between the burners is 5".

Stainless steel crossover burner ignition channel with "angled" mounting tabs. The crossover channel mounts at the end of the the burners. Please note: These crossovers have tabs that are at a 90 degree angle. The channel length between the burners is 6-1/2".

Stainless steel crossover burner ignition channel. The crossover channel mounts at the end of the the burners and has "flat" mounting tabs. The channel length which fits between the burners is 5-7/8".

Stainless steel crossover burner ignition channel with "flat" mounting tabs. The crossover channel mounts at the end of the the burners and carries flame to the adjacent burner for ignition. The channel length, which fits between the burners, is 4-7/8".

Stainless steel crossover burner ignition channel. The crossover channel mounts at the end of the the burners and has "flat" mounting tabs. The channel length which fits between the burners is 9-1/4".

Stainless steel crossover burner ignition channel. The crossover channel mounts at the end of the the burners and has "flat" mounting tabs. The channel length which fits between the burners is 7-3/4".

Stainless steel crossover burner ignition channel. The crossover channel mounts at the end of the the burners and has "flat" mounting tabs. The channel length which fits between the burners is 4-3/8".

Stainless steel crossover burner ignition channel with "flat" mounting tabs. The crossover channel mounts at the end of the the burners and carries flame to the adjacent burner for ignition. The channel length, which fits between the burners, is 5-1/8".

Stainless steel crossover burner ignition channel. The crossover channel mounts at the end of the burners and has "flat" mounting tabs. The channel length which fits between the burners is 7-1/4".

24" stainless steel burner support bracket with crossover channels, for cast iron burners. Fits Brinkmann 4 burner models 810-2600-1, 810-2610-0, 810-2610-1, 810-2630-0. Used with 12-7/8" CIKR burners, shown for reference only. Mounting screws not included.

25-1/8" long stainless steel burner support bracket, for stainless steel tube burners. Fits Brinkmann Pro Series 4415 4-burner models 810-4415-4, 810-4415-E, 810-4415-T. The three carryover channels that go between the burners measure 4-7/8" each. Mounting screws not included. (Burners not included).

35-3/4" stainless steel burner support rail with crossover channels, for cast iron burners. Fits Brinkmann 6 burner models, 810-2700-0, 810-2700-1, 810-2705-1, 810-2720-0, 810-2720-1, 2700 Pro Series, 810-4675-0, 810-4675-1, 810-4675-3. Mounting screws "not" included.

17-3/8" x 4" porcelain coated steel heat plate. Shallow tent design, stands 7/8" tall at the peak of the tent. Features 2 slotted mounting holes at one end and one at the other. Fits a variety of Brinkmann and many other Brands/Models.

Black porcelain coated heat distribution plate. Measures 18-3/4" front to back X 10-1/8" wide. (Sold by each, more than one may be required.)

Heavy gauge 430 stainless steel, tent shaped burner shield. Measures 16-3/4" long X 4" wide (measured across the bottom). Features slotted punched holes and cut-outs on both ends. IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Stainless steel tent shaped heat distribution plate. Measures 15" long X 5" wide (measured across the bottom) . Features 2 vents on each side and a centered cut out section on one end. IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Stainless steel tent shaped burner heat shield. Measures 15-1/8" long X 3-3/4" wide (measured across the bottom). Features punched holes and cut-outs on both ends. Fits many Brinkmann models. IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Stainless steel tent shaped burner shield. Measures 15-1/4" long X 3-1/8" wide (measured across the bottom). Features single mounting hole at the peak of the tent, on each end. Fits many Brinkmann models. IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Stainless steel "shallow" tent shaped burner shield. Measures 14-1/4" long X 4" wide (measured across the bottom). Features punched holes and cut-outs on both ends. Fits many Brinkmann models. IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Stainless steel tent shaped burner shield. Measures 16-13/16" long X 3-5/16" wide (measured across the bottom). Features single mounting hole at the peak of the tent, on each end. Fits many Brinkmann models. IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Louvered heat tent measures 15-3/8" long X 3-5/8" wide (measured across the bottom). Features four louver vents on the top of the shield. Stainless steel. IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

17-3/4" X 10-1/4" stainless steel heat distribution plate. Features a shallow vented tent shape with one larger hole for manually igniting the burner, when necessary.  This heat plate is designed to be used with Brinkmann "U" shaped burner part BMU1, sold separately.  (Replaces Brinkmann OEM Part 600-8750-1). IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Heavy gauge 430 stainless steel, tent shaped burner shield. Measures 15-3/8" long X 3-3/4" wide (measured across the bottom). IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Heavy gauge 430 stainless steel, tent shaped burner shield. Measures 17-9/16" long X 3-3/16" wide (measured across the bottom). Features slotted holes at one end, and a round cutout on the opposite end. IMPORTANT: Remove protective plastic film (if present) from heat plates prior to use.

Porcelain coated stamped steel cooking grate. Measures 9-1/4" wide x 15-3/8" front to back. More than one required, sold individually.

"Two piece" cast iron cooking grate set. Porcelain coated "matte" finish (non-gloss). Each section measures 16-7/8" front to back X 11-1/2" wide, for a total set width of 23".

2pc. Heavy duty, cast iron cooking grates hold heat, and clean up easily thanks to its porcelain enamel finish and non-stick properties. Two grates at 19-3/16in. x 12-3/8in. each in a set that offers a total of 24-3/4in. x 19-3/16in. coverage.

Freshen up your grilling experience! Replace your cooking grates where the meat greets the heat with these heat-holding and robust solid cast iron cooking grates. Rust-resistant and easy to clean, thanks to their porcelain enameled finish. They make perfect sear marks and are great for everyday grilling for many seasons to come.

What’s Included:

• (1) Two piece porcelain coated cast iron cooking grate set.
• Grate Sections Measure: 19-3/16in. x 12-3/8in. each.
• Total Grate Coverage:  24-3/4in. x 19-3/16in.

17-5/8" X 26-5/8" three piece, "gloss finish", porcelain enameled cast iron cooking grate set. Each section measures 17-5/8" front to back X 8-7/8" wide for a total set width of 26-5/8".

"Gloss finish" porcelain enameled cast iron cooking grate. Measures 17-5/8" front to back X 8-7/8" wide.  Sold individually.

Two piece, porcelain coated "matte finish" (non-gloss) cast iron cooking grate set. Each piece measures 12-3/8" wide x 18-7/8" front to back, for a total set width of 24-3/4".

Three piece "gloss finish" porcelain coated cast iron cooking grate set.  All sections measure 17-9/16" front to back. Two sections are 8-7/8" wide and one section is 10-3/8" wide. Total set width measures 28-1/8".

Heavy duty 3 piece "matte finish" cast iron cooking grate set. Each section measures 18-3/4" front to back X 10-1/2" wide. For a total set width of 31-1/2".

Heavy duty, cast iron cooking grate holds heat, and cleans up easily thanks to its porcelain enamel matte finish and non-stick properties. One grate at 19-1/8in. x 12-3/8in. width. Measure you’re grills grate area to calculate the quantity of grates your grill requires.

Freshen up your grilling experience! Replace your cooking grates where the meat greets the heat with these heat-holding and robust solid cast iron cooking grates. Rust-resistant and easy to clean, thanks to their porcelain enameled finish. They make perfect sear marks and are great for everyday grilling for many seasons to come.

What’s Included:

• (1) 19-1/8in. x 12-3/8in. porcelain coated cast iron cooking grate.
• Sold individually, more than one required depending on grill size.

Heavy duty 3 piece cast iron cooking grate set, with porcelain coated matte finish. Two sections measures 12" wide x 15" front to back and the third "center" section measures 7-7/8" wide x 15" front to back. For a total set width of 31-7/8". Fits some Charbroil Advantage/Performance series models.

19-1/8" X 17-1/2" two piece "matte finish" cast iron cooking grate set. Both pieces measure 17-1/2" front to back. One piece measures 10-3/8" wide and the other 8-3/4" wide, for a total set width of 19-1/8". Grates feature a finger notch on each side for easy installation and removal.

Heavy duty, matte finish cast iron cooking grate. Measures 10-3/8" wide X 17-5/8" front to back. Normally used in sets of multiples of itself or along with part CG73P-CI. Sold individually.

Heavy duty, porcelain enameled "matte finish" cast iron cooking grate. Measures 10-3/8" wide X 19-1/4" front to back. More than one required. Sold individually. (Also available as a set of 3, see part CG69PCI-3).

Heavy duty, porcelain enameled "matte finish" cast iron, 3-piece cooking grate set. Fits Ducane Stainless Series 5-burner grills and a variety of other brands and models. Each section measures 19-1/4" front to back X 10-3/8" wide. Total surface area measurement of the set is 19-1/4" X 31-1/8".

"Matte finish" porcelain enameled cast iron cooking grate. Measures 8-3/4" wide X 17-5/8" front to back.  Sold individually.

Single piece, 5/16" diameter solid stainless steel rod (304 Grade), cooking grate. Fits Ducane Stainless Series 5-burner models and a variety of other brands/models. Measures 19-1/4" front to back X 10-3/8" wide. More than one required. Sold individually. (Also available as a 3 piece set, see part CG96SS-3).

3 piece stainless steel cooking grate set.  Sturdy 5/16" diameter solid stainless steel rod construction (304 grade).  Fits Ducane Stainless Series 5-burner models and a variety of other brands/models. Each piece measures 19-1/4" front to back X 10-3/8" wide. Total surface area measurement of the set is 19-1/4" X 31-1/8".

Attractive black and chrome heat/gas Control Knob measures 2-5/16in. (dia. at base). Replaces an existing damaged, worn or broken heat control knob on bbq gas grills. Fit Kit included to secure knob to  6mm or 8mm “D” shaped gas valve stems at the proper stand-off height.

What’s Included:

• 1 Chrome and Black Gas Control Knob (plastic)
• 1 Fit Kit for proper installation (6 pc.)

Features:

• Attractive and easy-to-clean chrome heat control knob
• Fits 6mm or 8mm “D” shaped gas control valve stems
• 6 inserts to insure proper mounting to a variety of BBQ Gas Grills

Fitment:

• Fit Kit includes 6pc. inserts that allow for selecting knob "ON/OFF" position and a set screw with locking pressure tab.
• Variety of insert lengths for proper stand-off height: Flush, 1/4in., 1-1/2in. Inserts can be trimmed to your desired length for a professional fit.
• Click PDF in preview window for assembly instructions.

Jumper wire for closing off unused terminals on battery powered electronic ignition modules. Measures 6" long, (including the connectors). Features flat spade connectors with plastic protectors on each end.

Three output "AA" electronic ignition module with push button battery cap. Features 3 male flat spade output terminals on the back, mounting lock-ring nut, black plastic battery cap with spring and soft rubber push button top. Battery not included.

Four output "AA" electronic ignition module with push button battery cap. Features 4 male flat spade output terminals on the back, mounting lock-ring nut, black plastic battery cap with spring and soft rubber push button top. Battery not included.

Five output "AA" electronic ignition module with push button battery cap. Features 5 male flat spade output terminals on the back, mounting lock-ring nut, black plastic battery cap with spring and soft rubber push button top. Module measures 3-3/8" long X 2" wide. Battery not included.

3-5/8" long main burner igniter electrode with mounting bracket. Features a 90 degree bend electrode tip, 3" long white ceramic insulator with attached mounting bracket and a flat male spade wire terminal. Mounting hardware included. Fits a variety of Brinkmann, Kenmore, Master Forge, Members Mark/Sams Club models.

"AA" electronic igniter spark generator. Includes push button cap, internal battery connection spring and mounting locknut. Features two output terminals on back of the module.  Genuine Broilmaster Part.

Two output "AA" electronic ignition module with push button battery cap. Features 2 male flat spade output terminals on the back, mounting lock-ring nut, black plastic battery cap with spring and soft rubber push button top. Fits Charbroil Performance, Classic and Kenmore models as well as many other brands/models.

Push button battery cap with spring, for "AA" electronic ignition module. The cap features a soft rubber "push button" top. The diameter at the base of the cap measures 1-1/4".

Push button battery cap for MHP "AAA" electronic ignition module. Features chrome finish with black rubber push button top. Base diameter is: 1-5/16" Includes module mounting lock ring nut.

Ignitor gas collector box with electrode and 14" wire. This collector box extends out about 1-1/2 inches and the electrode length is 1/2" from the gas collector box. Mounts with single screw.

Ignitor gas collector box with electrode and wire. This collector box extends out about 4 inches and the electrode length is 3-1/4" from the gas collector box. Mounts with two screws.

Stainless steel ignitor spark box with electrode and wire. Mounts between burners and ignites the gas as it flows through the burner tube. Measures 5-5/16" across the box and stands out approximately 3-1/2".

Stainless steel ignitor spark box with electrode and wire. Mounts between burners and ignites the gas as it flows through the burner tube. Measures 4-5/16" across the box and stands out approximately 3-1/2".

20" igniter wire. Features flat female spade connectors on both ends.

20in. Red Igniter Wire with one insulated female Spade terminal on one end, to one insulated female Round terminal on opposite end.

What’s Included:

• (1) 20in. Igniter Wire for Weber Grills and Other Brands that require flat female spade to round female terminal connection points.

Universal gas grill 2 output electronic ignition module with push button cap that utilizes one AAA Battery (not included).  Features a soft rubber top push-button with chrome finish bezel and mounting lock ring, clear epoxy encapsulated coil, (2) male spade output terminals on the back side.

Requires a 3/4in. or 13/16in. mounting hole.

Why a new electronic ignition module? You go to fire up the grill and all you get is silence. No spark, no flame, just disappointment. Why do these ignition modules decide to throw in the towel? Environmental factors – moisture, heat, and grease can all take their toll on delicate electronic components, causing them to malfunction. Insufficient voltage or fluctuations in electrical current can lead to failure. Like all electronic components, ignition modules have a finite lifespan. Replace your 2 Output Port Electronic Ignition Module and light your way to a better grilling experience!

What’s Included:

• (1) Universal Electronic Ignition Module with Push Button - 2 Output

3 output "AAA" electronic spark generator. Features three male spade output wire terminals on the back side, clear epoxy encapsulated coil, module mounting lock ring and a push button battery cap. Requires a 3/4" or 13/16" mounting hole. Requires one "AAA" battery, not included.

Universal gas grill 4 output electronic ignition module with push button cap that utilizes one AAA Battery (not included).  Features a soft rubber top push-button with chrome finish bezel and mounting lock ring, clear epoxy encapsulated coil, (2) male spade output terminals on the back side.

Requires a 3/4in. or 13/16in. mounting hole.

Why a new electronic ignition module? You go to fire up the grill and all you get is silence. No spark, no flame, just disappointment. Why do these ignition modules decide to throw in the towel? Environmental factors – moisture, heat, and grease can all take their toll on delicate electronic components, causing them to malfunction. Insufficient voltage or fluctuations in electrical current can lead to failure. Like all electronic components, ignition modules have a finite lifespan. Replace your 4 Output Port Electronic Ignition Module and light your way to a better grilling experience!

What’s Included:

• (1) Universal Electronic Ignition Module with Push Button - 4 Output

Universal 6 output "AA" ignition module with soft push button battery cap. Features 6 output terminals on the back. Mounting hole needs to be at least 7/8" diameter. Battery not included.

Universal gas grill Single Output electronic ignition module with push button cap that utilizes one AAA Battery (not included).  Features a soft rubber top push-button with chrome finish bezel and mounting lock ring, clear epoxy encapsulated coil, (1) male spade output terminals on the back side.

Requires a 3/4in. or 13/16in. mounting hole.

Why a new electronic ignition module? You go to fire up the grill and all you get is silence. No spark, no flame, just disappointment. Why do these ignition modules decide to throw in the towel? Environmental factors – moisture, heat, and grease can all take their toll on delicate electronic components, causing them to malfunction. Insufficient voltage or fluctuations in electrical current can lead to failure. Like all electronic components, ignition modules have a finite lifespan. Replace your Single Output Port Electronic Ignition Module and light your way to a better grilling experience!

What’s Included:

• (1) Universal Electronic Ignition Module with Push Button - 1 Output

14ft. length propane adapter hose with stainless steel overbraid.  Long reach is ideal for extending your gas line for Camping and RVs. Allows for a full-size propane tank to be used with your portable grill or appliance. The extra long 14ft. length offers great versatility and safety for locating your camping firepit, etc.

Features an easy-screw-on large green knob that connects to the full-size propane tank. The small brass fitting end attaches to your propane appliance (in the same manner as a small propane camping bottle would). Hose is wrapped in stainless steel overbraid for added protection and durability as well as a strong deterrent for rodents.

What’s Included:

• (1) 14ft. Propane Adapter Hose with Stainless Steel Overbraid, with attached QCC1 Propane Gas fitting from full size tank to hose, and from hose to US standard threaded 1 pound disposable tank type appliance fitting.

3/8in. Quick Connect fitting with integrated On/Off ball valve. Features “Couple Safe Technology Thermal Shut-off Device Protection”. Designed to only allow gas line connection when the valve is in the closed position. Dust plug included.

Female threaded (3/8in. FNPT) end fits onto 3/8in. fixed supply line.

What’s Included:

• 1 On/Off Ball Valve Quick Connect Fitting
• Includes Female threaded (3/8" FNPT) end fits onto 3/8" fixed supply line, Quick Connect coupler at other end.

3/8in. Quick Connect Fitting for use with 3/8in. gas hose. 3/8in. FNPT (Female National Pipe Thread) end, and Quick Connect Coupler on the other. Commonly used for Quick Connecting BBQ Grills (and other low pressure BTU output outdoor gas appliances) to a permanent gas supply line. ANSI certified for natural (NG) and propane (LP) gas use. Dust plug included.

Quick connect components make it easy to connect and disconnect the grill from a fixed gas supply line quickly and without tools. This convenience is especially beneficial if you need to move the grill or store it away when not in use.

What’s Included:

• 3/8" Gas Line Quick Connect Fitting

High performance 2-Stage gas grill regulator and 30in. of high-pressure heavy duty hose with 3/8in. fitting assembly. This low-pressure BBQ Grill Regulator is used for connecting commercial grade BBQ & Catering Grills requiring gas input in excess of 100,000 BTUs per hour through a green Type 1 fitting to propane tank. These 2-stage regulators also work well with larger tank-fed outdoor firepits that often trigger bypass mode on portable tanks.

Features two regulators that allow the Type 1 tank connection to disperse a higher volume of gas to pass through the tank connection before going into bypass mode (which kills the available gas pressure). Used for LP (Propane) gas only.

What’s Included:

• 2-Stage Regulator and 30in. Hose Assembly which includes:
• 3/8in. ID high pressure hose, 30in. length.
• 3/8in. flare fitting hex nut for the appliance end connection, and a POL green hand nut for the propane tank connection.
• One 3/8in. to 3/4in. brass adapter included.

Set this automatic Gas Timer to your desired grilling/gas flow time from one to three hours, and it will safely shut off gas to your grill automatically. Preset intervals from one, up to three hours. Works with either natural gas (NG) or propane (LP).

Has your grill ever been accidentally left “On”? Set this automatic Gas Timer to your desired grilling time, and be worry free. Never fret about leaving your grill on for wasteful hours until your tank runs dry, or even days if you're connected to natural gas!

Product Details:

• This timer accommodates 1/2in. NPT piping (both ends).
• 100,000 BTU rating.
• Natural Gas or Propane.
• Quality FireMagic Part.

What’s Included:

• Automatic Gas Timer: 1hr, 2hr, or 3hr duration.
• Installation/operating instructions.

Replacement Timer Control Knob for 1hr. to 3hr. Automatic Gas Timer (Item# 3090). Black plastic control knob features a sure grip edge surface and white lettered graphics indicating "Off" and 1-2-3 hour incremental settings. Quality FireMagic Part.

What’s Included:

• 1 Control Knob for Automatic Gas Timer Valve in 1hr, 2hr, 3hr increments.

Set this automatic Gas Timer to your desired grilling/gas flow time in available 20min. increments, and it will safely shut off gas to your grill automatically. Preset intervals from 20 minutes to 1 hour. Works with either natural gas (NG) or propane (LP).

Has your grill ever been accidentally left “On”? Set this automatic Gas Timer to your desired grilling time, and be worry free. Never fret about leaving your grill on for wasteful hours until your tank runs dry, or even days if you're connected to natural gas!

Details:

• Accommodates 1/2in. NPT piping (both ends).
• 100,000 BTU rating.
• Natural Gas or Propane.
• Quality FireMagic Part.

What’s Included:

• Automatic Gas Timer Assembly, 20/40/60min. durations.
• Installation/operating instructions.

Replacement Timer Control Knob for 20/40/60 minute Automatic Gas Timer (Item# 3092). Black plastic control knob features a sure grip edge surface and white lettered graphics indicating "Off" and 20, 40 and 60 minute incremental settings. Quality FireMagic Part.

What’s Included:

• 1 Control Knob for Automatic Gas Timer Valve in 20/40/60 minute increments.

Outdoor gas appliance/bbq grill 20/40/60 minute Automatic Gas Timer with included stainless steel mounting panel/box assembly.

Has your grill ever been accidentally left “On”? Set this automatic Gas Timer to your desired grilling time, and be worry free. Never fret about leaving your grill on for wasteful hours until your tank runs dry, or even days if you’re connected to natural gas! A must have for your home, rental homes, AirB&B, or commercial applications.

Automatic Timer: Set this automatic Gas Timer to your desired grilling/gas flow time from one to three hours, and it will safely shut off gas to your grill automatically. Preset intervals from 20 minutes to 1 hour. Works with either natural gas (NG) or propane (LP).

• 20/40/60 minute interval gas valve timer.
• 100,000 BTU rating.
• Natural Gas or Propane.

Mounting Panel Box: Premium Stainless Steel enclosure/recessed mounting box with Push to Open/Close magnetic door.

• Outer Dimension with Mounting Overhang: 7-3/4in. x 7-3/4in.
• Rough-in Size for Recess: 6-1/2in. x 6-1/2in. square opening.
• Preassembled Gas Timer and Mounting Box with internal plumbing, ready to mount.
• Two internally mounted 1/2in. flare connector adapters with “out/in” labels

What’s Included:

• Automatic Gas Timer and Mounting Box Assembly: 20/40/60 minute durations.
• Installation and operating instructions.
• Quality FireMagic Part.

Outdoor gas appliance/bbq grill 1 to 3 hour Automatic Gas Timer with included stainless steel mounting panel/box assembly.

Has your grill ever been accidentally left “On”? Set this automatic Gas Timer to your desired grilling time, and be worry free. Never fret about leaving your grill on for wasteful hours until your tank runs dry, or even days if you’re connected to natural gas! A must have for your home, rental homes, AirB&B, or commercial applications.

Automatic Timer: Set this automatic Gas Timer to your desired grilling/gas flow time from one to three hours, and it will safely shut off gas to your grill automatically. Preset intervals from one, up to three hours. Works with either natural gas (NG) or propane (LP).

• 1-2-3 hour interval gas valve timer.
• 100,000 BTU rating.
• Natural Gas or Propane.

Mounting Panel Box:

• Premium Stainless Steel enclosure/recessed mounting box with Push to Open/Close magnetic door.
• Outer Dimension with Mounting Overhang: 7-3/4in. x 7-3/4in.
• Rough-in Size for Recess: 6-1/2in. x 6-1/2in. square opening.
• Preassembled Gas Timer and Mounting Box with internal plumbing, ready to mount.
• Two internally mounted 1/2in. flare connector adapters with “out/in” labels.

What’s Included:

• Automatic Gas Timer and Mounting Box Assembly: 1hr, 2hr, or 3hr durations.
• Installation and operating instructions.
• Quality FireMagic Part.

5/16in. ID propane/LP gas hose in 24 inch length with a brass 3/8in. female hex nut flare connector, assembled to propane regulator that features a QCC1 connection with large hand nut that attaches to the propane tank. Replaces #7502 Genuine Weber Part.

Is your gas line cracked, split, or damaged? Is your regulator faulty and not supplying enough fuel to your burners? Replace and/or faulty regulator with this Genuine Weber part. Check your gas line for cracks, rodent tooth marks and potential leaks around fittings. The diaphragm inside the regulator can become damaged or weakened. Over time, regulators experience wear from exposure to heat, weather, and general use. Order your replacement hose and regulator assembly today!

What’s Included:

• 1 5/16in. x 24in. hose with attached regulator assembly with integrated QCC1 to-tank connection.
• Instruction sheet.
• Genuine Weber Part.

5/16in. ID propane/LP gas hose in 40 inch length with a brass 3/8in. female hex nut flare connector, assembled to propane regulator that features a QCC1 connection with large hand nut that attaches to the propane tank. Genuine Weber Part.

Is your gas line cracked, split, or damaged? Is your regulator faulty and not supplying enough fuel to your burners? Replace and/or faulty regulator with this Genuine Weber part. Check your gas line for cracks, rodent tooth marks and potential leaks around fittings. The diaphragm inside the regulator can become damaged or weakened. Over time, regulators experience wear from exposure to heat, weather, and general use. Order your replacement hose and regulator assembly today!

What’s Included:

• (1) 5/16in. x 40in. hose with attached regulator assembly with integrated QCC1 to-tank connection.
• Instruction sheet.
• Genuine Weber Part.

5/16in. ID propane/LP gas hose in 24 inch length with a brass 3/8in. female hex nut flare connector, assembled to propane regulator that features a QCC1 connection with large hand nut that attaches to the propane tank. A high quality aftermarket part at a cost effective price.

Is your gas line cracked, split, or damaged? Is your regulator faulty and not supplying enough fuel to your burners? Replace your faulty regulator and hose with this quality aftermarket part. Check your gas line for cracks, rodent tooth marks and potential leaks around fittings. The diaphragm inside the regulator can become damaged or weakened. Over time, regulators experience wear from exposure to heat, weather, and general use. Order your replacement hose and regulator assembly from Grillparts.com today!

What’s Included:

• (1) 5/16in. x 24in. hose with attached regulator assembly with integrated QCC1 to-tank connection.
• Instruction sheet.
• Quality aftermarket part.

5/16in. ID propane/LP gas hose. 2 (dual) 22 inch length hoses with a brass 3/8in. female hex nut flare connectors, assembled to a single propane regulator that features a QCC1 connection with large hand nut that attaches to the propane tank. Created for gas grills requiring a second feed hose for a side burner, etc.

Are your gas lines cracked, split, or damaged? Is your regulator faulty and not supplying enough fuel to your burners? Check your gas line for cracks, rodent tooth marks and potential leaks around fittings. The diaphragm inside the regulator can become damaged or weakened. Over time, regulators experience wear from exposure to heat, weather, and general use. Order your replacement hose and regulator assembly today!

What’s Included:

• (1) Dual Hose Regulator Assy, with (2) 5/16in. x 22in. hoses with single attached regulator with integrated QCC1 to-tank connection.
• Instruction sheet.

5/16in. ID propane/LP gas hose in 40 inch length with a brass 3/8in. female hex nut flare connector, assembled to propane regulator that features a QCC1 connection with large hand nut that attaches to the propane tank. A high quality substitute at a lower price point than Weber #99281.

Is your gas line cracked, split, or damaged? Is your regulator faulty and not supplying enough fuel to your burners? Replace and/or faulty regulator with this quality aftermarket part. Check your gas line for cracks, rodent tooth marks and potential leaks around fittings. The diaphragm inside the regulator can become damaged or weakened. Over time, regulators experience wear from exposure to heat, weather, and general use. Order your replacement hose and regulator assembly today!

What’s Included:

• (1) 5/16in. x 40in. hose with attached regulator assembly with integrated QCC1 to-tank connection.
• Instruction sheet.
• Quality aftermarket part.

10ft. length of 3/8in. ID flexible Stripwound gas hose and Quick Connect kit with 3/8in. fittings. Certified for natural gas or propane connection to existing fixed gas supply line. Please measure fitting size and assure prior to ordering.

Quick connect kits make it easy to connect and disconnect the grill from a fixed gas supply line quickly and without tools. This convenience is especially beneficial if you need to move the grill or store it away when not in use.

What’s Included:

• 10ft. of 3/8in. ID flexible Stripwound gas hose with 3/8in. fittings.
• Quick Connect Fittings: Includes a 3/8in. Quick Connect fitting (that screws onto a 3/8in. NPT male pipe thread) and a 3/8in. SAE female hex nut (that connects to the BBQ grill manifold), and a compression fitting for fast release.

12ft. length of 3/8in. ID flexible Stripwound gas hose and Quick Connect kit with 3/8in. fittings. Certified for natural gas or propane connection to existing fixed gas supply line. Please measure fitting size and assure prior to ordering.

Quick connect kits make it easy to connect and disconnect the grill from a fixed gas supply line quickly and without tools. This convenience is especially beneficial if you need to move the grill or store it away when not in use.

What’s Included:

• 12ft. of 3/8in. ID flexible Stripwound gas hose with 3/8in. fittings.
• Quick Connect Fittings: Includes a 3/8in. Quick Connect fitting (that screws onto a 3/8in. NPT male pipe thread) and a 3/8in. SAE female hex nut (that connects to the BBQ grill manifold), and a compression fitting for fast release.

14ft. length of 3/8in. ID flexible Stripwound gas hose and Quick Connect kit with 3/8in. fittings. Certified for natural gas or propane connection to existing fixed gas supply line. Please measure fitting size and assure prior to ordering.

Quick connect kits make it easy to connect and disconnect the grill from a fixed gas supply line quickly and without tools. This convenience is especially beneficial if you need to move the grill or store it away when not in use.

What’s Included:

• 14ft. of 3/8in. ID flexible Stripwound gas hose with 3/8in. fittings.
• Quick Connect Fittings: Includes a 3/8in. Quick Connect fitting (that screws onto a 3/8in. NPT male pipe thread) and a 3/8in. SAE female hex nut (that connects to the BBQ grill manifold), and a compression fitting for fast release.

Need to swap between a Natural Gas and Propane (or vice-versa) Gas Regulation? This Convertible gas regulator is for use with natural gas (NG) or propane (LP) fuel, and comes preset for natural gas regulation (4in. water column) and can be quickly and easily converted to propane (10in. water column) regulation. This versatility allows users to easily switch between different gas sources without needing to replace the regulator.

How easy is it to convert the regulator?
Simply remove the seal cap and invert/reverse the plunger (the plunger is threaded at each end, simply unscrew to remove, flip and screwed-in to install) then replace the seal cap.

Dimensions: Overall length measures 3in., square diaphragm casing measures 2-3/8in x 2-3/8in.

Features:

• Convertable to/from Natural Gas to/from Propane Gas Regulator
• 1/2in. NPT inlet and outlet openings and a fuel flow directional arrow.
• Rated 1/2 PSIG.

23in. length, Stainless Steel Hose Protector/rodent guard with spring coil construction. Fits over 3/8in. and 5/16in.  propane gas hose.

Easy install — simply slide the guard over the propane hose at the fitting end. Protects the hose from kinking, touching hot surfaces on the inside of your BBQ grill, and helps to prevent rodents from chewing on your propane gas hose. Made in USA.

Propane hose/regulator assembly "not included", and is shown for display purposes only.
