CharBroil Quickset Grill Parts

Char-Broil Quickset Grill Parts
Char-broil Quickset gas grill parts

External appearance may vary between Grill Models

Char-Broil Quickset replacement gas grill parts at warehouse discount pricing.

Low prices. Quick, same-day shipping. Order today!

Grillparts.com stocks top-quality OEM and exact-fit grill parts for your Char-Broil Quickset model gas grill.

Char‑Broil has been America's favorite grill brand since 1948, and a fine-tuned Char-broil Grill makes your cookouts better! Char-Broil grills are easy-to-fix with new parts from Grillparts.com. Install new Char-Broil Quickset grill parts and bring back your grilling confidence and pleasure.

We've been shipping Char-Broil parts to backyard chefs since 1996.

Scroll down to view our parts listing for your Char-Broil grill and order today. The Quickset series has morphed over the years and these are the remaining parts available for all models.


Carefully measure and compare the photos of the parts you are replacing to assure they are correct for your model.

Quickset Grill Parts | Quickset
Parts for Quickset Grills: Big Easy Main Ignitor Wire
Big Easy Main Ignitor Wire
Item# 4153184
Big Easy main ignitor wire. 15" long with round connector at wire end and flat connector at ceramic end.
SOLD OUT: Expected In Stock 7/31/2024
$3.99
View
Parts for Quickset Grills: Eleven Inch Ignitor Wire
Eleven Inch Ignitor Wire
Item# 4153196
Ignitor wire with two round connectors. Measure 11 inches long. (NOTE: The terminal ends of the wire can be forced onto a flat spade, if needed.)
In Stock
$3.39
View
Parts for Quickset Grills: Single Pole Snap-In Ignitor Push Button
Single Pole Snap-In Ignitor Push Button
Item# 4153713
Snap-In ignitor push button for units without side burners. (Single pole. Uses one wire.) Wire not included.
In Stock
$5.99
View
Parts for Quickset Grills: Eleven Inch Ignitor Wire
Eleven Inch Ignitor Wire
Item# 4153720
Ignitor wire with two round connectors. Measure 11 inches long. (NOTE: The terminal ends of the wire can be forced onto a flat spade, if needed.)
In Stock
Retail: $0.58
$3.39
View
Parts for Quickset Grills: 6" Diameter Wheel
6" Diameter Wheel
Item# 4154569
6" diameter black plastic wheel. Features a 3/8" diameter axle hole, 1-5/8" long axle hub and 1-1/2" wide tire tread. Fits a variety of Charbroil, Kenmore, Thermos and many other Brands/Models. Sold individually. Genuine Charbroil Part.
In Stock
$4.99
View
Parts for Quickset Grills: 8000 Series Dual Warming Rack - "Top Tier"
8000 Series Dual Warming Rack - "Top Tier"
Item# 4156449
"Top tier" of dual warming rack for 8000 Series models which feature two tiered swing away warming rack systems. Surface dimensions 24" X 8 3/4". Pivot rod length 28-3/4".  IMPORTANT: This is the top tier only.
In Stock
$15.23
View
Parts for Quickset Grills: Big Easy Burner Tent
Big Easy Burner Tent
Item# 4500226
Burner tent for Char-broil "Big Easy" model grills. Stamped steel vented tent measures 6" X 6". Sold individually, more than one required.
In Stock
$9.69
View
Parts for Quickset Grills: 8-3/8" Big Easy Series Burner Crossover Tube
8-3/8" Big Easy Series Burner Crossover Tube
Item# 4500228
Burner crossover tube. Carries the flame across to the adjacent burner. Tube length is 8-3/8" end to end. Burners not included and shown for display only. This part is used with Big Easy three-burner grills. Sold by each. More than one may be needed.
In Stock
$4.29
View
Parts for Quickset Grills: 23-7/8" X 5-1/4" 7000 Series Modular Style Burner Shield Drip Vaporiser Bar
23-7/8" X 5-1/4" 7000 Series Modular Style Burner Shield Drip Vaporiser Bar
Item# 4500290

7000 Series cooking system burner shield/drip vaporizer bar. Dimensions are 23-7/8" Long (measured at its longest points, the tips of the end mounting tabs) X 5-1/4"" Wide.  The bar length measured along the top peak is 23-3/8".

The briquet rack under the burner is not required with grills using this bar.

In Stock
$19.35
View
Parts for Quickset Grills: 26-1/4" X 6-1/2" 8000 Series Modular Style Burner Shield Drip Vaporiser Bar
26-1/4" X 6-1/2" 8000 Series Modular Style Burner Shield Drip Vaporiser Bar
Item# 4500291
Quickset 8000 Series vaporizer bar. Measures 26-1/4" X 6-1/2".
In Stock
$17.99
View
Parts for Quickset Grills: Masterflame 7000 Series MF2 Bar Burner Assembly
Masterflame 7000 Series MF2 Bar Burner Assembly
Item# 4505084
Top ported Masterflame 2-1/4" X 17" stainless steel burner assembly. Venturi tube spacing is 2-3/8" (center to center), the tube reach is 6-3/8" (measured from the end of the venturi tubes to the center line of the vertical bend) and the tube drop is 2" (measured from the bottom surface of the burner to the bottom of the venturi tubes). Fits 1999 to present Masterflame 7000 Series models. Ships as shown which includes igniter collector box and electrode  Genuine Charbroil Part..
SOLD OUT: Expected In Stock 7/24/2024
$20.67
View
Parts for Quickset Grills: 2-3/4" "Big Easy" Round Burner
2-3/4" "Big Easy" Round Burner
Item# 5068030
Round burner used in sets of two or three depending on grill model. Ignitor electrode is mounted on the rear of the burner. Fits Big Easy and some Traditional models. Tube length is 7-5/8" out from the center of the burner.
In Stock
$16.38
View
Parts for Quickset Grills: Double Pole "Snap-In" Igniter Push Button
Double Pole "Snap-In" Igniter Push Button
Item# 5156113
"Snap-in" 2 pole pushbutton igniter. Features two wire connectors, one "round" at bottom and one "flat spade" on the side. Mounts to grill with "Snap In" tabs.
In Stock
$7.79
View
Parts for Quickset Grills: MF2 Ignitor Electrode
MF2 Ignitor Electrode
Item# 5156119
Ignitor electrode. This electrode mounts to the bottom of the collector box and connects to the pushbutton wire.
In Stock
$5.69
View
Parts for Quickset Grills: Control Knob Bezel

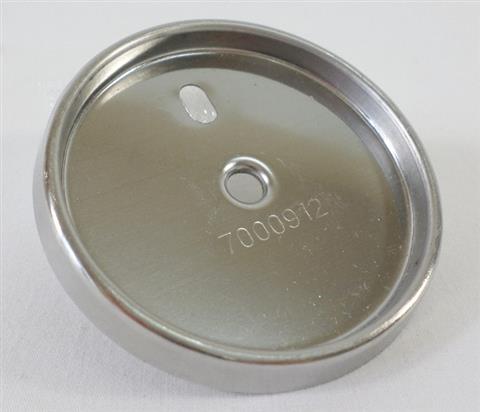

Control Knob Bezel
Item# 7000912
Control knob bezel with center hole and slotted mounting hole located directly above center. Bezel is 2-7/8" in diameter.
In Stock
$2.49
View
Parts for Quickset Grills: Grease Drip Cup and clip
Grease Drip Cup and clip
Item# 80000270
Grease Drip Cup and clip
In Stock
$5.49
View
Parts for Quickset Grills: 11-3/4" X 22-1/8" Stainless Steel Cooking Grate
11-3/4" X 22-1/8" Stainless Steel Cooking Grate
Item# CG49SS
One piece, "stainless steel" solid rod cooking grate. Measures 11-3/4" front to back X 22-1/8" left to right. Fits Charbroil 6000 Series and many other brands/models. Please measure to assure fit. (The corners on the cooking grid are square not curved.)
In Stock
Retail: $80.15
$48.95
View
Parts for Quickset Grills: 16-7/8" X 6-1/4" Burner Heat Tent
16-7/8" X 6-1/4" Burner Heat Tent
Item# G208-0029-W1
Burner heat tent. Black porcelain coated steel. Measures 6-1/4" wide X 16-7/8" long.
In Stock
$13.49
View
Parts for Quickset Grills: 7" Diameter Wheel
7" Diameter Wheel
Item# G437-0037-W1
7" diameter black plastic wheel. Features a 5/16" diameter axle hole, 1-3/4" long axle hub and 1-7/8" wide tire tread. Fits a variety of Charbroil, Kenmore and many other Brands/Models.  Sold individually.  Genuine Charbroil Part.
In Stock
$5.99
View
Parts for Quickset Grills: 25-3/4" X 17-1/2", 4-5/8" Deep Trough With Round Legs (For "Single" Trough Models, Full Width)
25-3/4" X 17-1/2", 4-5/8" Deep Trough With Round Legs (For "Single" Trough Models, Full Width)
Item# G517-0800-W1
4-5/8" Deep Char-Broil RED radiant trough. Measures 17-1/2" front to back X 25-3/4" wide and is 4-5/8" deep (measured from the side edge).  Fits some models that use a "single" full width trough design. Features round peg style mounting legs.
In Stock
$38.99
View
